Tuger automatic multi-channel fluorescence cell analyzer
Key words:
Classification:
- Product Description
- Specifications
- Operation Guide
- Product Accessories
-
- Commodity name: Tuger automatic multi-channel fluorescence cell analyzer
Tuger is equipped with two fluorescent excitation wavelengths and two detection filters. It offers additionally a bright field view on all samples in the digital microscope optics. The analyzer allows for the routine analysis of cell density and viability, and transfection efficiency. The pre-configured apps guarantee an easy, anyhow safe execution of all tests.
Patented autoFocus automated cell analyzer

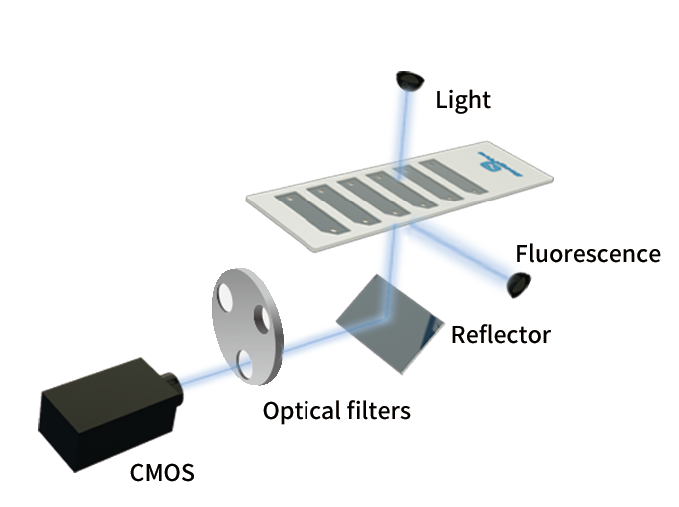

Tuger enables multi-channel and multi-field sampling. It provides automatic focusing of samples to ensure a clear image and accurate results. The use of light sources and filter wheel design greatly enhances system stability and operability.
Five fields of view per sample with high repeatability and fast image per processing

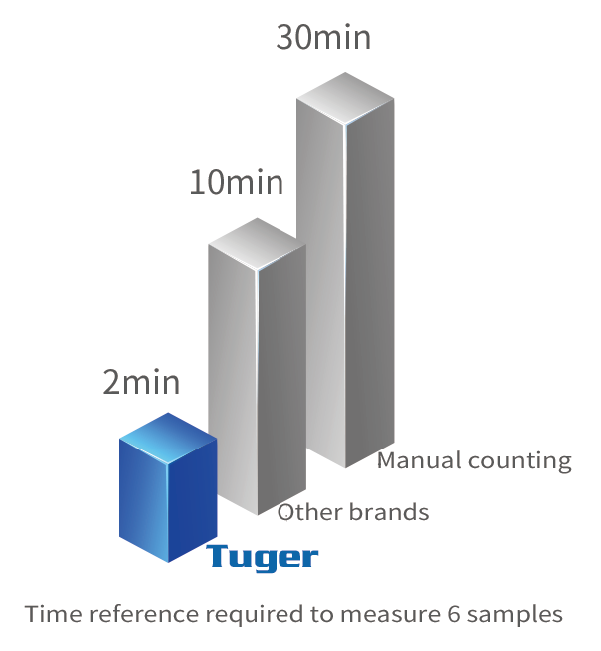

During the counting process, Tuger samples 5 fields of view per sample and simultaneously collects bright field and two fluorescence channel image information. The larger sample acquisition volume ensures counting accuracy. Tuger can complete fluorescence analysis for a single field of view within 4 seconds and provide fluorescence analysis results for 6 samples in just 2 minutes*.
*Results from a single fully automated test of six samples of suspension culture cells at a concentration of 1×106cells/mL.
Multi-fluorescence synchronous detection
Tuger can provide up to 8 excitation lights and 6 filters, which allows for combinations of up to 15 fluorescence channels*.It fufills various cell application requirements. Set up your desired experimental protocols, then let Tuger take control of the experiment.
*Up to eight excitation light emitters are available（365nm、475nm、545nm、630nm)And six types of optical filters（445nm、530nm、553nm、605nm、635nm、695nm)，Up to 15 combinations of fluorescence channels can be achieved.
FDA’s 21 CFR Part 11 complient operation
Tuger provides features such as multi-user levels and permissions management, encrypted data export, electronic signatures and records, audit trail, and more. These functionalities ensure accurate, reliable, and consistently stable results while also providing the capability to identify illegal or tampered records.

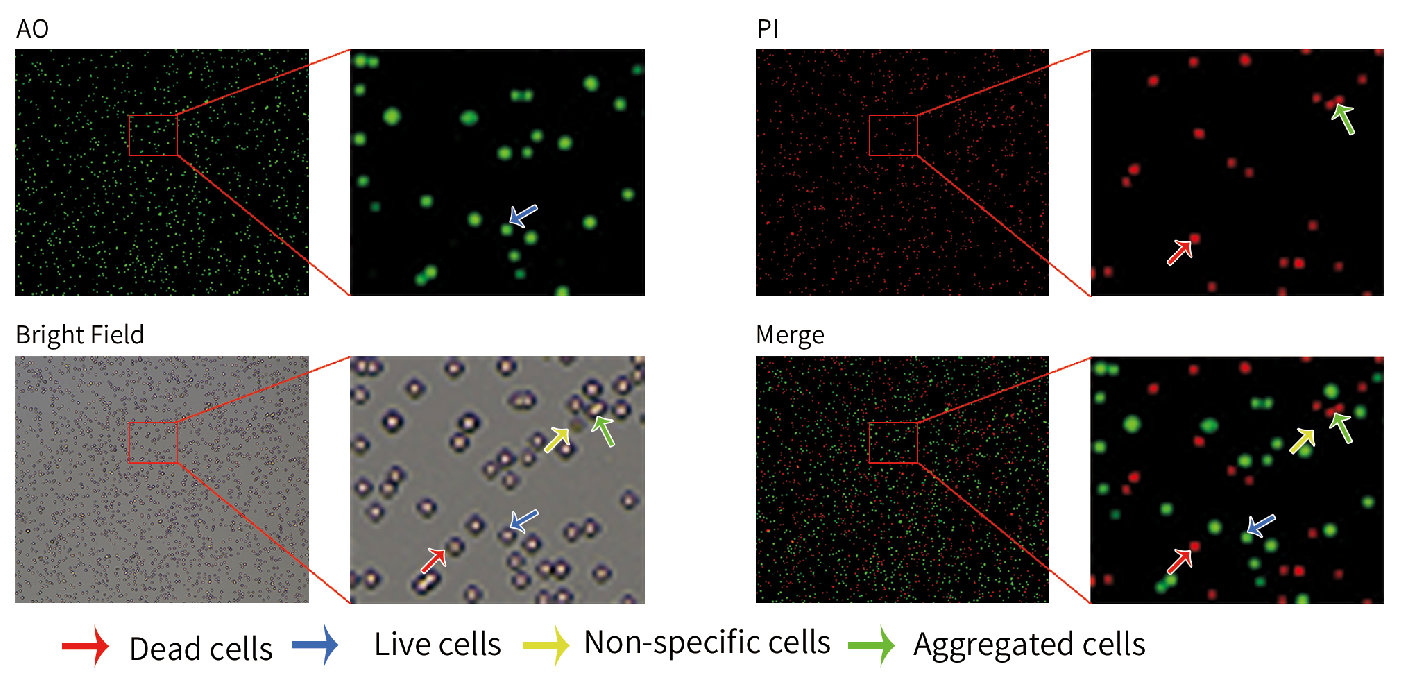

AO/PI Double fluorescent staining*

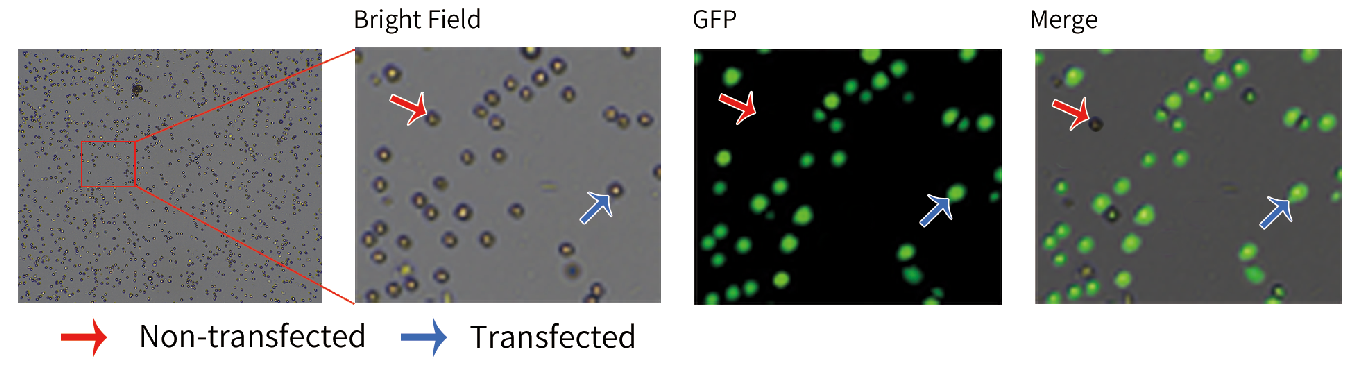

Cell transfection——GFP Fluorescence detection*
*The experimental images are from the Newton Optical Research Institute, and both liveness counting and cell transfection were performed using Hela cells.
-
General Name Tuger Cell Analyzer Dimensions（W×D×H） 190mm×276mm×367mm Weight 4.4kg（Excluding power adapter） Screen 7-inch multi touch color display screen Camera Industrial grade CMOS 6.3 million pixels (color high-definition) Storage Standard 128GB hard drive, other capacities are optional Focus mode Auto Focus Other Interfaces 2 USB ports, 1 HDMI port, and 1 RJ45 network port Applicable consumables EasyFive six-digit counting slide Technical parameters concentration range 1×104 - 3×107 cells/mL Diameter range 5 - 200μm Viability range 0 - 100% Sample volume 15 μ L (GPC100 slide); 25 μ L (GPC200 slide) Single sample analysis time (single view) Bright field<1 second, Fluorescence<12 seconds (AO/PI) Single sample analysis time (five views) Bright field<8 second, Fluorescence<54 seconds (AO/PI) Six sample analysis times (five views) Bright field<55 second, Fluorescence<334 seconds (AO/PI) Excitation wavelength 475mm,545mm(Up to 8 types of LED excitation light sources) Emission wavelength 530nm,605nm(Up to 6 types of emission light filters) Fluorescent light source Blue LED/Green LED Bright field light source White LED Output format jpg、PDF、csv Features 6-slot counting high-throughput, flow cytometry data, organoid analysis, FDA, Lims laboratory management system interface, dilution calculator Item number Tuger Cell Analyzer N1TGF12 GPC200 N3EF120（1 box（50 slide）） GPC100 N3EF110（1 box（50 slide））
